EDM vise precision Right angle spark EDM clamps China wholesale

VISE-A82M Right angle EDM vise 0-82mm

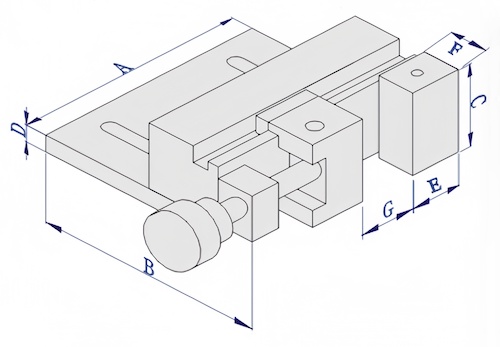

Size: A=175mm,B=140mm,C=54mm,D=15mm,E=30mm,F=25mm
Rang G max: 82mm

Specifications:
**Parallelism: Within 100mm / 3µm
**Squareness: Within 100mm / 5µm
**Material: SUS420 or SUS440
**Hardness: HRC 52-55 degrees
**Holding Scope: 0-82mm

Features :

• Precision vise is used for high-precision wire EDM;
• After vacuum heat treatment, deep cryogenic treatment and grinding;

• Manual adjustment of the clamp mouth is convenient and flexible, ensuring that the body is not easily deformed.
