VISE-A70M Strange angle EDM vise 0-70mm
  • Detail

EDM clamps vise for high precision wire EDM

VISE-A70M Strange angle EDM vise 0-70mm

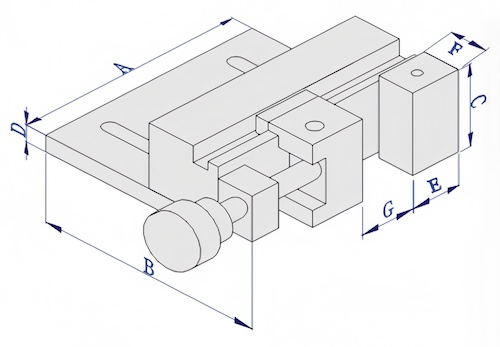

Size: A=135mm,B=140mm,C=54mm,D=11mm,E=25mm,F=25mm
Rang G max: 70mm

Specifications:
**Parallelism: Within 100mm / 3µm
**Squareness: Within 100mm / 5µm
**Material:  SUS420 or SUS440​
**Hardness: HRC 52-55 degrees
**Holding Scope:  0-70mm


Features :

• ​ Precision vise is used for high-precision wire EDM;
• ​ After vacuum heat treatment, deep cryogenic treatment and grinding;

• ​​Manual adjustment of the clamp mouth is convenient and flexible, ensuring that the body is not easily deformed.​​​
