Spark EDM clamps,EDM right angle vise hihg precision

VISE-A100M Right angle vise 0-100mm

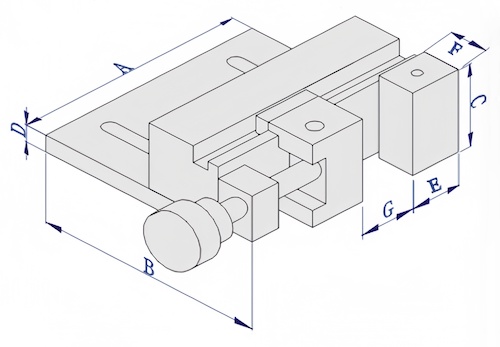

Size: A=185mm,B=140mm,C=54mm,D=15mm,E=30mm,F=25mm
Rang G max: 100mm

Specifications:
**Parallelism: Within 100mm / 3µm
**Squareness: Within 100mm / 5µm
**Material: SUS420 or SUS440
**Hardness: HRC 52-55 degrees
**Holding Scope: 0-100mm

Features :

• Precision vise is used for high-precision wire EDM;
• After vacuum heat treatment, deep cryogenic treatment and grinding;

• Manual adjustment of the clamp mouth is convenient and flexible, ensuring that the body is not easily deformed.
