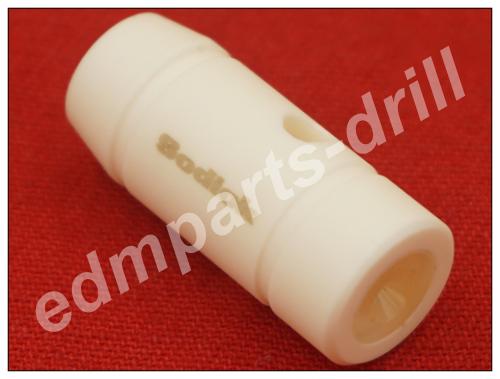

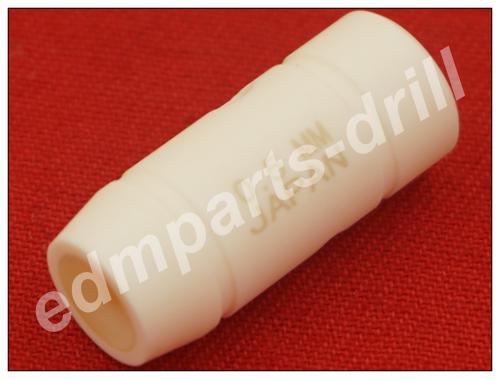

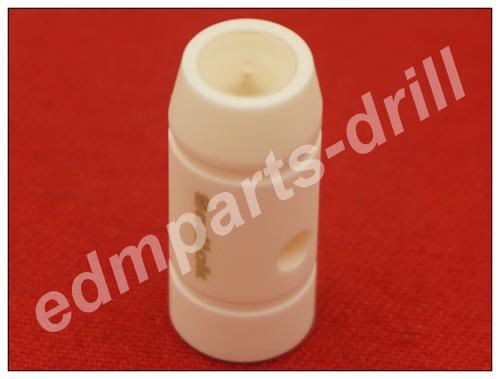

3561673 3561678 Sodick TS guide ceramic and Sapphire for Sodick small hole EDM
Sodick small hole EDM Sodick TS guide ceramic sapphire material
Following sizes are available:
0.10mm, 0.13mm,0.15mm,0.20mm,0.25mm
0.30mm to 3.0mm
ID Dia Original code Original code
ID0.1mm 3564705 3563917
ID0.1mm 0224970 0225790
ID0.2mm 3561930 3564207
ID0.2mm 3561932 3562375
ID0.3mm 3561933 3562236
ID0.3mm 3561666 3561172
ID0.4mm 3561667 3561883
ID0.5mm 3561668 3561173
ID0.6mm 3561669 3561974
ID0.7mm 3561670 3561971
ID0.8mm 3561671 3561174
ID0.9mm 3561672 3561421
ID1.0mm 3561673 3561175
ID1.1mm 3561674 3561855
ID1.2mm 3561675 3561176
ID1.3mm 3561676 3561975
ID1.4mm 3561677 3561976
ID1.5mm 3561678 3561219
ID1.6mm 3561679 3561177
ID1.7mm 3561680 3561977
ID1.8mm 3561681 3561178
ID1.9mm 3561682 3561856
ID2.0mm 3561683 3561179
ID2.1mm 3561684 3561978
ID2.2mm 3561685 3561979
ID2.3mm 3561686 3561980
ID2.4mm 3561687 3561981
ID2.5mm 3561688 3561982
ID2.6mm 3561689 3561983
ID2.7mm 3561690 3561984
ID2.8mm 3561691 3561985
ID2.9mm 3561692 3561422
ID3.0mm 3561693 3561986
