EDM wire guides

EDM diamond guide is one of the most common consumable parts for wire EDM machines.

The quality of the diamond guide decides the machining accuracy and efficience.

Our manufactory use Laser drilling machine to make the holes, with the smallest size 0.001mm

On technique, we can make wire guides with angle cutting 45-50 degrees.

Now our wire guides' quality is very stable after so many years of experience.

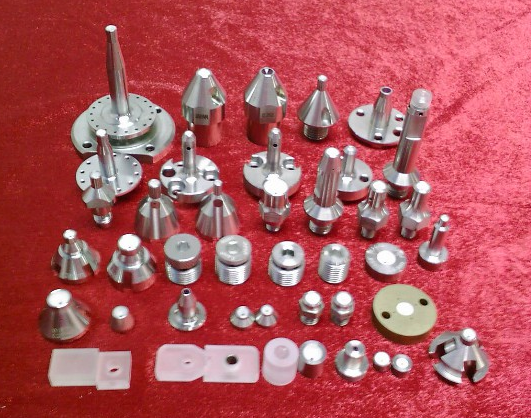

We supply diamond wire guides for all the famous brands of wire EDM machines.
Including Agie, Charmilles, Sodick, Makino, Mitsubishi, Fanuc, Seibu, Ona, Accutex, Brother, and Hitachi.
We can also OEM wire guides according to the customer's samples

Charmilles

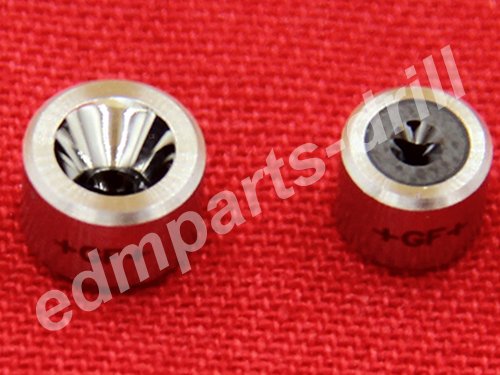

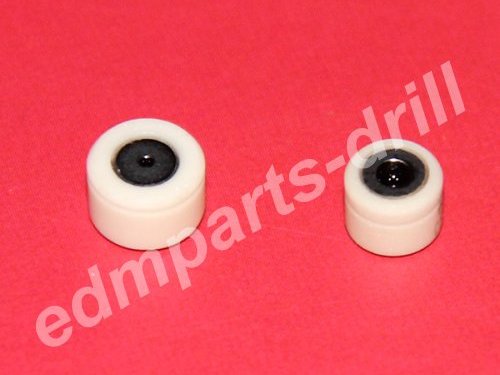

These years, The black diamond type of diamond guide is more welcomed by customers.
The guides use a completely big black diamond, with a long life type and stable quality.

The following sizes are most commonly

100431022 ID0.10mm
200431114 ID0.15mm
200431112 ID0.20mm
100432511 ID0.25mm
200432512 ID0.30mm

100431027 ID0.10mm
200431124 ID0.15mm
200431122 ID0.20mm
100430586 ID0.25mm
200432814 ID0.30mm

Sodick

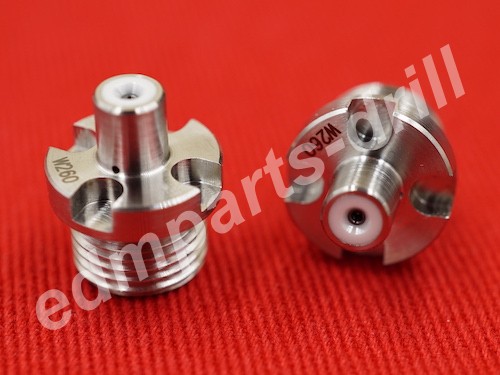

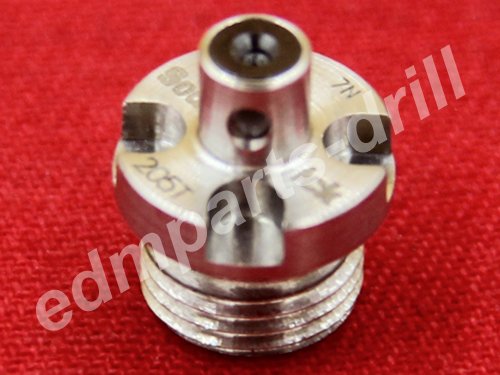

Our diamond guide for Sodick AQ type of machines sells a lot, similar to the original quality.

0206048, 118762A  ID=0.11mm
0205992, 118745A  ID=0.155mm
0206049, 118758A  ID=0.16mm
0206043, 118725    ID=0.205mm
0205895, 118726    ID=0.255mm
0206051, 118760A  ID=0.26mm
0205993, 118727    ID=0.31mm​

0206155, 3110253  ID=0.11mm
0203156, 3110259  ID=0.155mm
0206157, 3110545  ID=0.16mm
0206158, 3110058  ID=0.205mm
0206159, 3110546  ID=0.21mm
0206160, 3110291  ID=0.255mm
0206161, 3110547  ID=0.26mm
0206163, 3110067  ID=0.31mm
​​

Makino

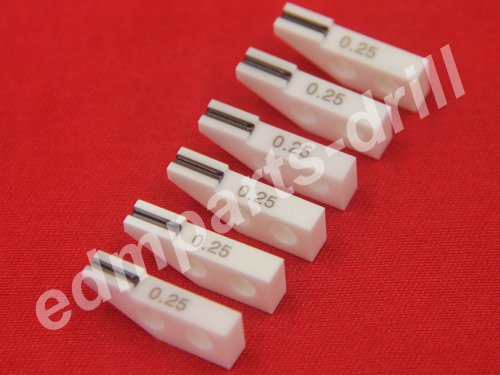

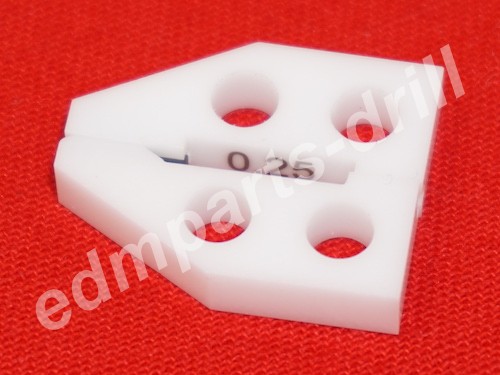

​Makino Diamond guide, V guide+flat guide set, two types: U type-left above, L type-right above

20EC080A406 ID0.20mm
20EC080A407 ID0.25mm
20EC080A408 ID0.30mm
20EC080A409 Press guide

9EC670A404   ID0.07mm
6EC80B406     ID0.10mm
6EC80B407     ID0.15mm
6EC80B403     ID0.20mm
6EC80B404     ID0.25mm
11EC80A401   ID0.30mm
6EC80B405     Press guide ​
​

Basic information about EDM wire guides

1. Function:

Wire threading.
The main function of the wire guide is to thread the electrode wire to ensure its linearity and stability during the cutting process.

2. Material:

Usually made of hard materials, such as synthetic diamond, sapphire, ruby or ceramic, to improve wear resistance and service life.

3. Application:

Wire EDM machines including SODICK, CHARMILLES, Makino, Seibu, Mitsubishi,ONA, Hitachi, Accutax, SSG,SPM, etc.
Their shapes and sizes may be different, but the basic functionality is similar.

​4. Accuracy:

The accuracy of the EDM wire guides affects the accuracy of the processed workpiece. A high-quality eye mold can reduce the vibration of the electrode wire and improve the surface finish and processing accuracy of the processed workpiece.

5. Service life:

The service life of EDM wire guide is affected by many factors, including the wear and tear of the discharge product, the manufacturing quality of the eye mold itself, and the operating conditions of the machine tool, etc.

6. Installation and replacement:

Installing and replacing the wire guides requires certain skills to ensure the correct guidance of the electrode wire and the stable operation of the machine tool.

7. Technology development:

With the development of technology, the design and materials of wire EDM guides are also constantly improved to adapt to higher precision and higher efficiency processing needs.

8. Market supply:

EDM wire guides are consumables and are provided by a variety of suppliers on the market. Users can choose the appropriate brand and model according to their needs.

Through the above introduction, we can see that the slow wire eye die plays a vital role in slow wire cutting processing, and its performance and maintenance directly affect the quality and efficiency of processing.

​
