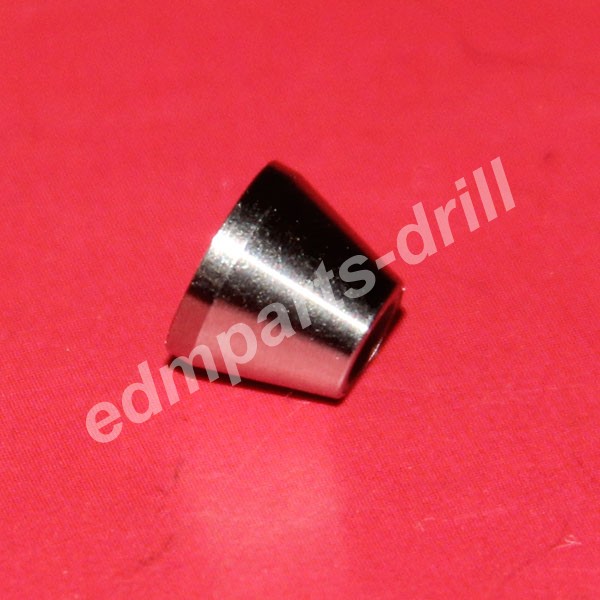

S104 Sodick Sapphire guide from China (Similar quality as Sodick original guide )
3080225 3080224, 3080223,3080210, 3080220, 3080219, 3080214, 3080213 S104 Sodick EDM Sapphire guide
Type : Stainess house + sapphire
Size: 0.05-0.32mm
| Electrode | Wire Guide Diameter | Ref# | Order No. | |
| (φmm) | (φmm) | (φin) | ||
| 0.10 | 0.105 | 0.0041 | 0200104 | 3080209 |
| 0.11 | 0.0043 | 0205662 | 3080210 | |
| 0.12 | 0.0047 | 0205663 | 3080211 | |
| 0.15 | 0.155 | 0.0061 | 0200120 | 0200120 |
| 0.16 | 0.0063 | 0205668 | 3080213 | |
| 0.17 | 0.0067 | 0205669 | 3080214 | |
| 0.20 | 0.205 | 0.0081 | 0205670 | 3080218 |
| 0.21 | 0.0083 | 0205671 | 3080219 | |
| 0.22 | 0.0087 | 0204689 | 3080220 | |
| 0.25 | 0.255 | 0.01 | 0205406 | 3080222 |
| 0.26 | 0.0102 | 0205407 | 3080223 | |
| 0.27 | 0.0106 | 0204690 | 3080224 | |
| 0.30 | 0.305 | 0.012 | 0205408 | 3087700 |
| 0.31 | 0.0122 | 0205409 | 3080225 | |
| 0.32 | 0.0126 | 0205410 | 3080226 | |
| For AWT | 0.4 | 0.0157 | 0200116 | 3080229 |
| 0.6 | 0.0236 | 0204702 | 3085043 | |
|
|
|
