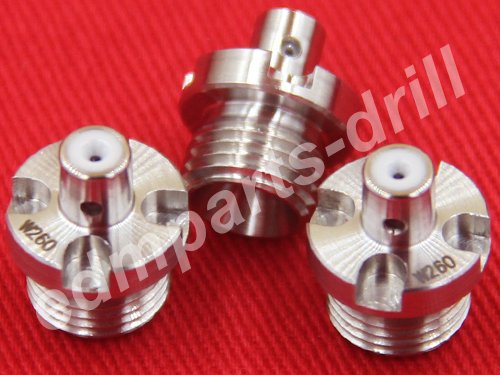

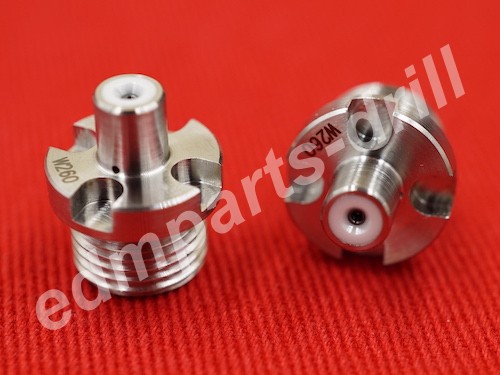

Sodick EDM wire guide diamond guide size 0.105-0.31mm
Application: Sodick AQ series EDM machine
Material: Stainless steel,ceramic, diamond
Quality grade: Similar to Sodick original wire guide.
Advantage: Laser drilling machine with high accuracy of the hole, over 15 years of exprierence.
| Electrode | Wire Guide Diameter | Ref# | Order No. | |
| Diameter | ||||
| (φmm) | (φmm) | (φin) | ||
| 0.1 | 0.110 | 0.004 | 206155 | 3110253 |
| 0.15 | 0.155 | 0.006 | 203156 | 3110259 |
| 0.160 | 0.006 | 206157 | 3110545 | |
| 0.2 | 0.205 | 0.008 | 206158 | 3110058 |
| 0.210 | 0.008 | 206159 | 3110546 | |
| 0.25 | 0.255 | 0.010 | 206160 | 3110291 |
| 0.260 | 0.010 | 206161 | 3110547 | |
| 0.3 | 0.310 | 0.012 | 206163 | 3110067 |
|
|
|
